Version control and code review
Objectives
Browse commits and branches of a Git repository.
Remember that commits are like snapshots of the repository at a certain point in time.
Know the difference between Git (something that tracks changes) and GitHub/GitLab (a platform to host Git repositories).
Instructor note
xx min teaching/discussion
Why do we need to keep track of versions?
Version control is an answer to the following questions (do you recognize some of them?):
“It broke … hopefully I have a working version somewhere?”
“Can you please send me the latest version?”
“Where is the latest version?”
“Which version are you using?”
“Which version have the authors used in the paper I am trying to reproduce?
“Found a bug! Since when was it there?”
“I am sure it used to work. When did it change?”
“My laptop is gone. Is my thesis now gone?”
Features: roll-back, branching, merging, collaboration
Problem: Your code worked two days ago, but is giving an error now. You don’t know what you changed.
Problem: You and your colleague want to work on the same code at the same time.
Roll-back: you can always go back to a previous version and compare
Branching and merging:
Work on different ideas at the same time
Different people can work on the same code/project without interfering
You can experiment with an idea and discard it if it turns out to be a bad idea
Image created using https://gopherize.me/ (inspiration).
Collaboration: review, compare, share, discuss
Reproducibility
Problem: Someone asks you about your results from 5 years ago. Can you get the same results now?
How do you indicate which version of your code you have used in your paper?
When you find a bug, how do you know when precisely this bug was introduced (Are published results affected? Do you need to inform collaborators or users of your code?).
With version control we can “annotate” code (browse this example online):
Example of a git-annotated code with code and history side-by-side.
What we typically like to snapshot
Software (this is how it started but Git/GitHub can track a lot more)
Scripts
Documents (plain text files much better suitable than Word documents, this material is tracked using Git)
Manuscripts (Git is great for collaborating/sharing LaTeX or Quarto manuscripts)
Configuration files
Website sources
Data
Demonstration
Example repository: https://github.com/coderefinery/planets
Commits are like snapshots and if we break something we can go back to a previous snapshot.
Commits carry metadata about changes: author, date, commit message, and a checksum.
Branches are like parallel universes where you can experiment with changes without affecting the default branch: https://github.com/coderefinery/planets/network (“Insights” -> “Network”)
With version control we can annotate code (example).
Collaboration: We can fork (make a copy on GitHub), clone (make a copy to our computer), review, compare, share, and discuss.
Code review: Others can suggest changes using pull requests or merge requests. These can be reviewed and discussed before they are merged. Conceptually, they are similar to “suggesting changes” in Google Docs.
Where to explore more
Exercises
Exercise Git-1: Turn a project to a Git repo and share it
Create a new directory called myproject with one or few files in it. This represents your own project. It is not yet a Git repository.
Turn this new directory into a Git repository.
Share this repository on GitHub (or GitLab, since it really works the same).
We offer three different paths of how to do this exercise.
Via GitHub web interface: easy and can be a good starting point if you are completely new to Git.
VS Code is quite easy, since VS Code can offer to create the GitHub repositories for you.
Command line: you need to create the repository on GitHub and link it yourself.
Create an repository on GitHub
First log into GitHub, then follow the screenshots and descriptions below.

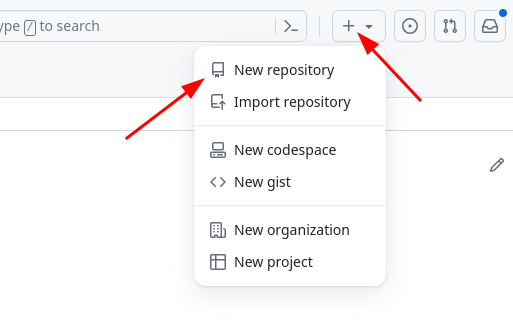

Click on the “plus” symbol on top right, then on “New repository”.
Then:

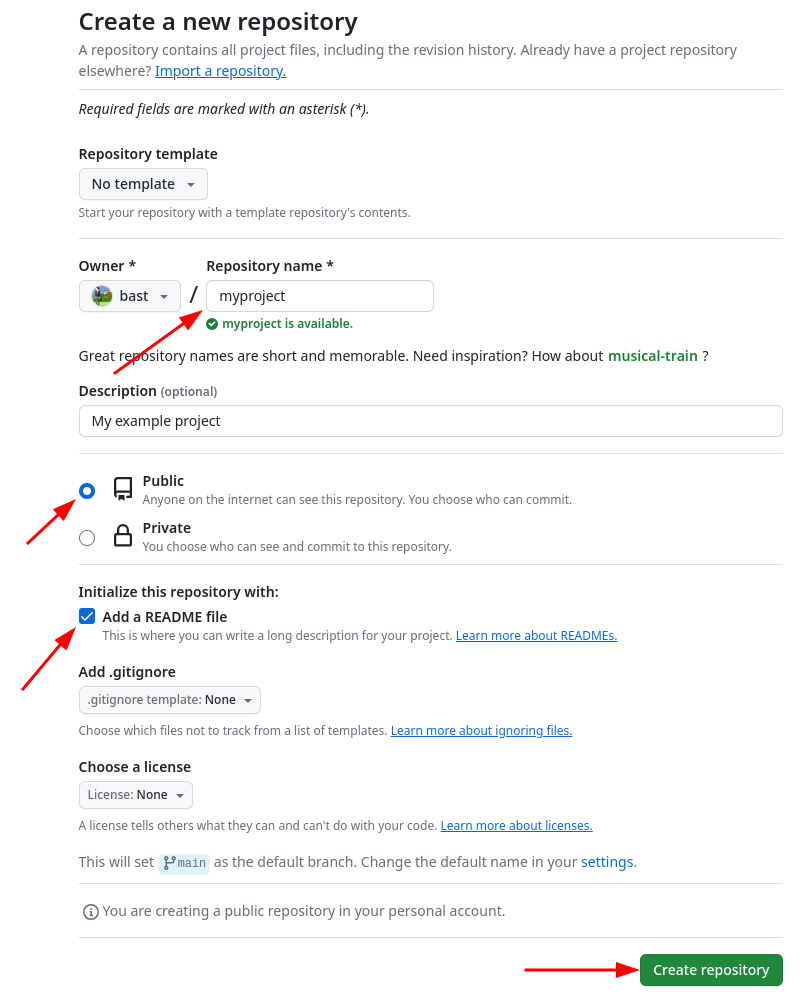

Choose a repository name, add a short description, and in this case make sure to check “Add a README file”. Finally “Create repository”.
Upload your files
Now that the repository is created, you can upload your files:

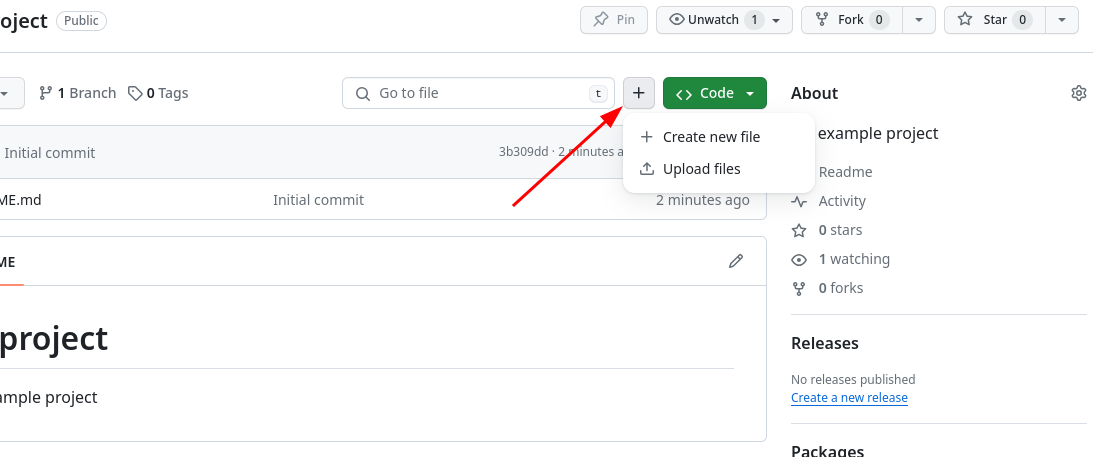

Click on the “+” symbol and then on “Upload files”.
In VS Code it only takes few clicks.

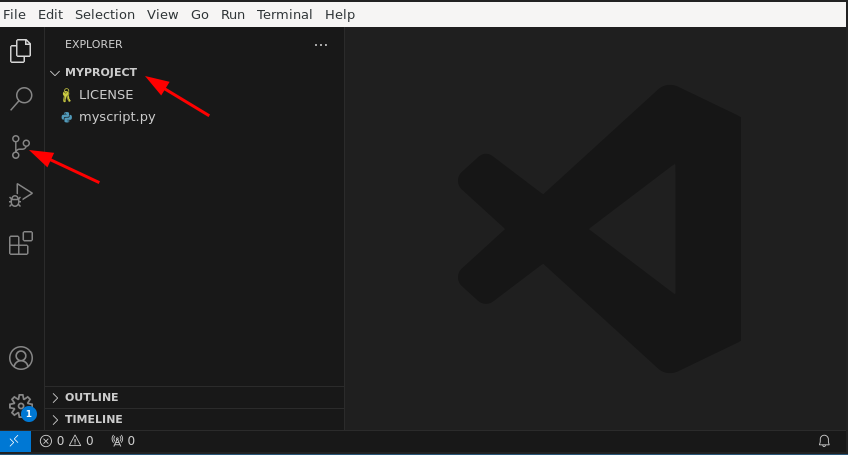

First, open the folder in VS Code. My example project here contains two files. Then click on the source control icon:
Open the folder in VS Code. Then click on the source control icon.

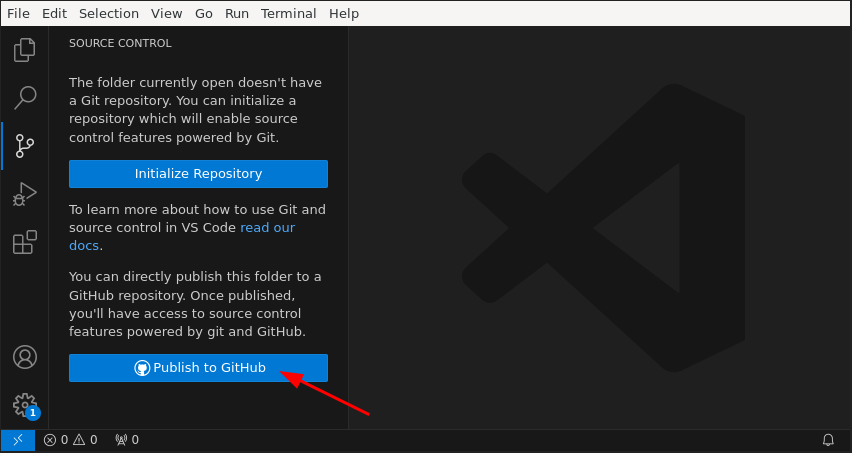

Choose “Publish to GitHub”. In this case I never even clicked on “Initialize Repository”.

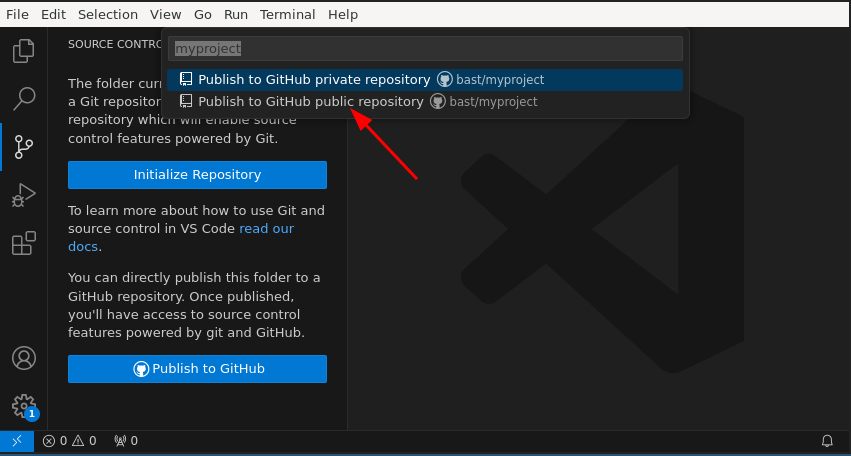

In my case I chose to “Publish to GitHub public repository”. Here you can also rename the repository if needed.

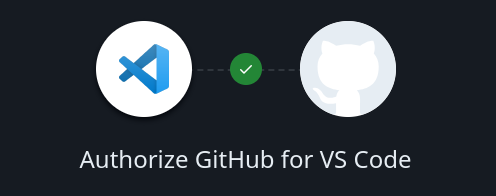

First time you do this you might need to authorize VS Code to access your GitHub account by redirecting you to https://github.com/login/oauth/authorize.

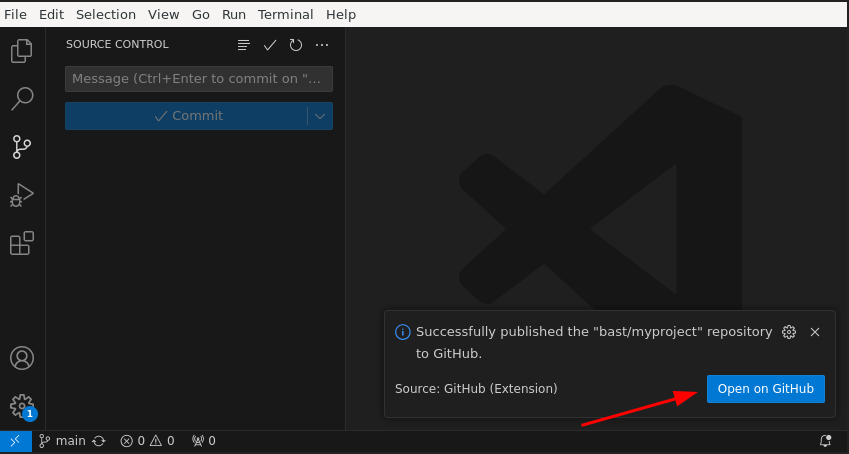

After it is published, click on “Open on GitHub”.
Make sure your Git is configured
We have an own section on this: https://coderefinery.github.io/git-intro/configuration/
Put your project under version control
My example project here consists of two files. Replace this with your own example files:
$ ls -l
.rw------- 19k user 7 Mar 17:36 LICENSE
.rw------- 21 user 7 Mar 17:36 myscript.py
I will first initialize a Git repository in this directory.
If you get an error, try without the -b main (for Git versions older than
2.28 your default branch will then be called master):
$ git init -b main
Now add and commit the two files to the Git repository:
$ git add LICENSE myscript.py
$ git commit -m "putting my project under version control"
If you want to add all files in one go, you can use git add . instead of git add LICENSE myscript.py.
Now you have a Git repository with one commit. Verify this with git log.
But it’s still only on your computer. Let’s put it on GitHub next.
Create an empty repository on GitHub
First log into GitHub, then follow the screenshots and descriptions below.
Click on the “plus” symbol on top right, then on “New repository”.
Then create an empty repository without any files and without any commits:

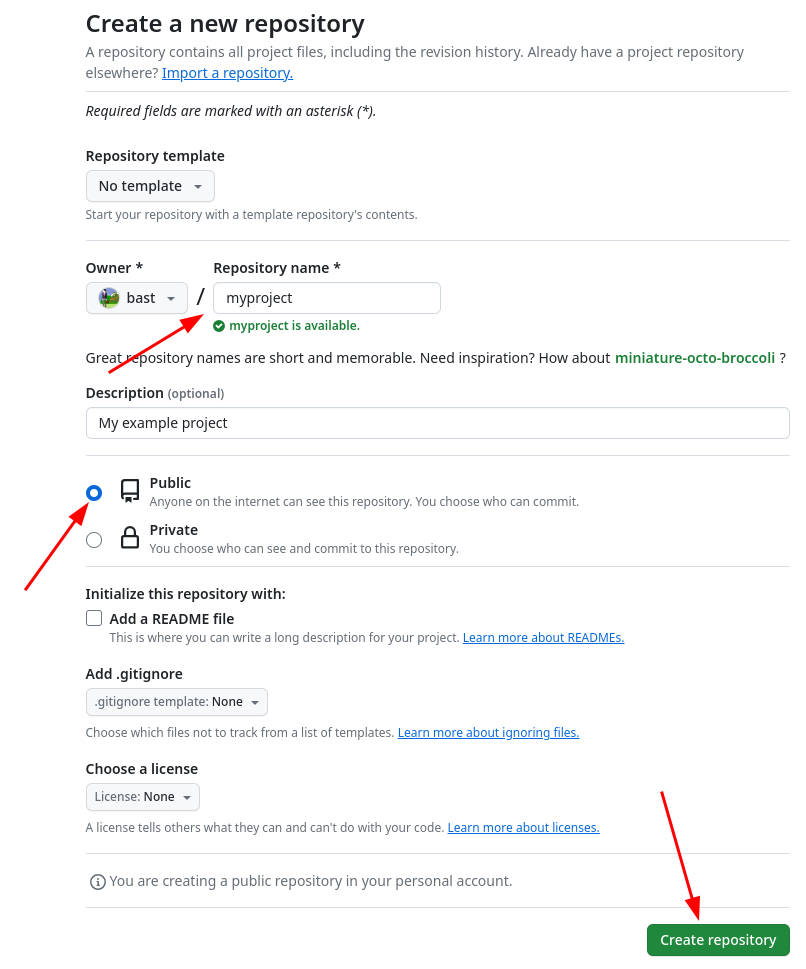

Choose a repository name, add a short description, but please do not check “Add a README file”. For “Add .gitignore” and “Choose a license” also leave as “None”. Finally “Create repository”.

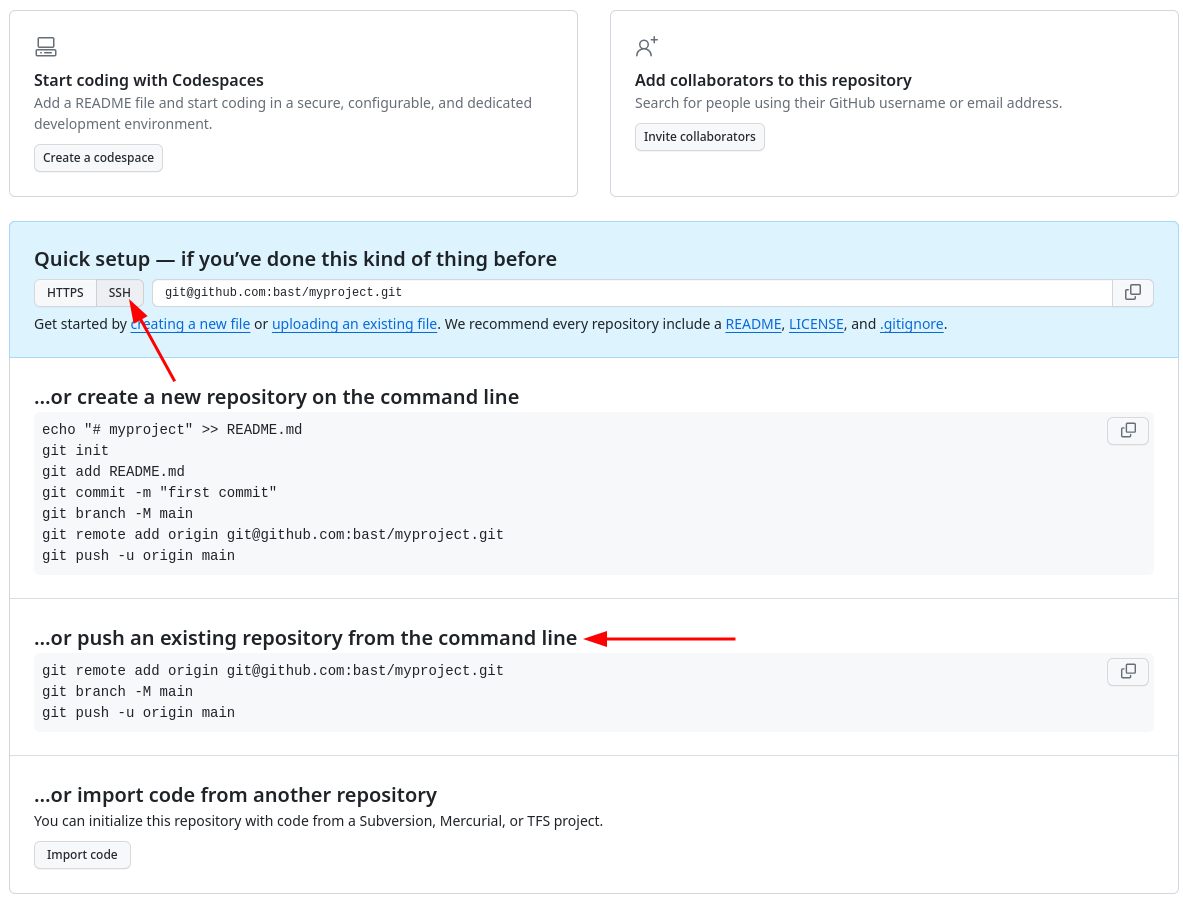

Once you click the green “Create repository”, you will see a page similar to:
What this means is that we have now an empty project with either an HTTPS or an SSH address: click on the HTTPS and SSH buttons to see what happens.
Push an existing repository from your computer to GitHub
We now want to follow the “… or push an existing repository from the command line”:
In your terminal make sure you are still in your myproject directory.
Copy paste the three lines below the red arrow to the terminal and execute those, in my case (you need to replace the “USER” part and possibly also the repository name):
$ git remote add origin git@github.com:USER/myproject.git
$ git remote add origin https://github.com/USER/myproject.git
Then:
$ git branch -M main
$ git push -u origin main
The meaning of the above lines:
Add a remote reference with the name “origin”
Rename current branch to “main”
Push branch “main” to “origin”
You should now see:
Enumerating objects: 4, done.
Counting objects: 100% (4/4), done.
Delta compression using up to 12 threads
Compressing objects: 100% (3/3), done.
Writing objects: 100% (4/4), 6.08 KiB | 6.08 MiB/s, done.
Total 4 (delta 0), reused 0 (delta 0), pack-reused 0
To github.com:USER/myproject.git
* [new branch] main -> main
branch 'main' set up to track 'origin/main'.
Reload your GitHub project website and your commits should now be online!
Troubleshooting
error: remote origin already exists
Explanation: You probably ran a
git remote add origin ...command, then changed your mind about HTTPS or SSH and then tried to run the othergit remote add origin ...command but “origin” then already exists.Recovery:
First remove “origin” with
git remote remove originThen run the correct
git remote add origin ...command
remote contains work that you do not have
Explanation: You probably clicked on “Add a README file” and now the repository on GitHub is not empty but contains one commit and locally you have a different history. Git now prevents you from accidentally overwriting the history on GitHub.
Recovery:
Use
git push --forceinstead ofgit push, which will force Git to overwrite the history on GitHubNote that this is a powerful but also possibly dangerous option but here it helps us. If it’s a brand new repo, it probably is fine to do this. For real repositories, don’t do this unless you are very sure what is happening.
This is not fully explained, because a lot of it is similar to the “Command line” method (and an RStudio expert could help us some). The main differeences are:
Put your project under version conrol
Tools → Version control → Project setup → Version conrol system = Git.
Select “Yes” for “do you want to initialize a new git repository for this project.
Select yes to restart the project with RStudio.
Switch to branch
mainto have you branch named that.
Create an empty repository on GitHub
Same as command line
Push an existing repository from your computer to GitHub
Under the “Create new branch” button → “Add Remote”
Remote name:
originRemote URL: as in command line (remember to select SSH or HTTPS as you have configured your RStudio)
The “Push” (up arrow) button will send changes on your current branch to the remote. The “Pull” (down arrow) will get changes from the remote.
Troubleshooting
Same as command line
Exercise Git-2: Contribute to the example repository
TODO: Have something in example repo that anyone could contribute to?
Fork the example repository: https://github.com/coderefinery/planets
Create a new branch in your fork and give it a descriptive name.
Make a modification on the new branch and create a new commit in the webinterface.
The new branch and the new commit now only exist on your branch on your fork, not yet in the original repository.
In case you would like to contribute your change back to the original repository, you would create a pull request (you are welcome to try). TODO: Full workflow with Issue and PR description?
TODO: In case you wanted to work on this exercise locally, the process would be the following: Fork on webinterface, clone to local computer, create new branch, work on branch, add, commit to local branch, push to remote - new branch : now same stage as when working in webinterface.
Exercise Git-3: Archaeology using Git annotate (“blame”)
Your goal is to find out when precisely this line was modified last time (which commit)?
Solution
TODO: Describe how it can be found! It was this commit: https://github.com/coderefinery/planets/commit/56cf6fdfef6a516ee369034d7c67a20237abb368
Keypoints
TODO
